The industry-leading Megalodon range has been developed to provide 2x 4×4 MiMo 4G/5G antenna systems covering 617-960/1427-6000MHz within a robust low-profile package. Covering global cellular bands for future-proof performance, the antenna provides effective functionality for 2x 4G Cat 18/20 and 5G modems. This can be combined with many other functions including single/dual band GPS/GNSS and up to 8×8 MiMo WiFi elements covering 2.4-7.2GHz (WiFi 6e/7).
The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame-retardant low-loss CS30 cables (Compliant with UN ECE R118) and a halogen-free, flame-retardant radome, the antenna is suitable for many environments and applications, including public safety and transportation.
The LGM variants have an integrated GPS/GNSS module supporting either L1 only or L1/L5 frequencies. This GPS module features advanced filtering for LTE B13/14 designed to minimize potential in-band interference.

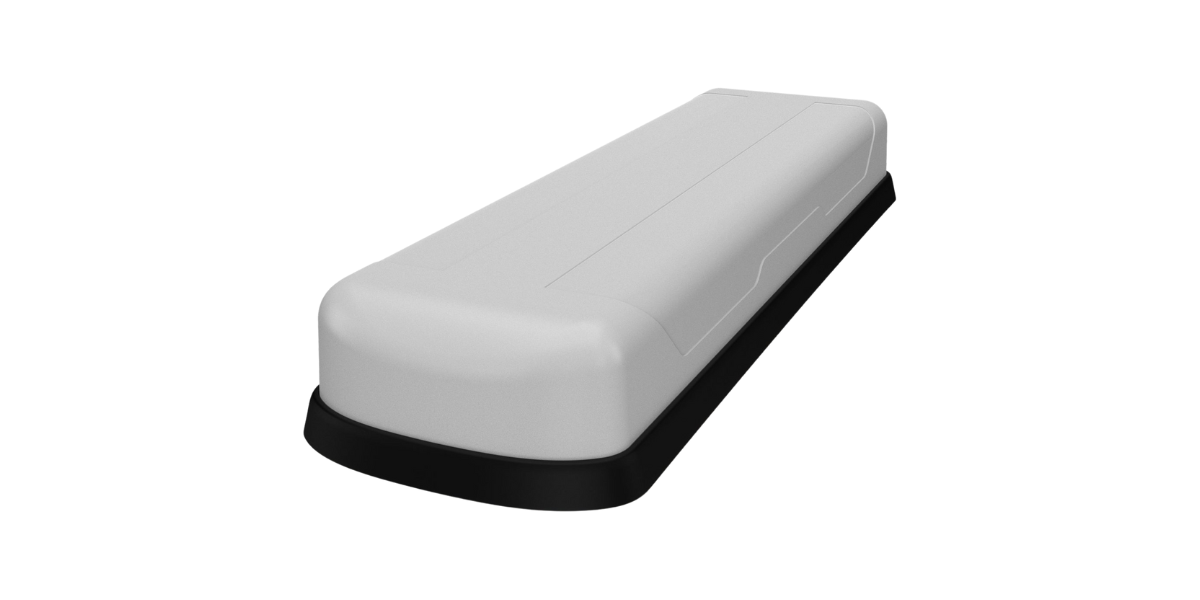

The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for Ingress protection.
FEATURES
- 8x 4G/5G Elements
- Up to 8×8 MiMo Dual Band WiFi 6e / 7
- Up to 2 GPS/GNSS L1 or L1/L5 bands
- Meets IK10 and IP69K
BENEFITS
- Low Height
- IP69K Ingress protection
- IK10 Impact protection
- UN ECE R118-compliant cable
APPLICATIONS
- Mobility
- First Responders
- Kiosks and devices
