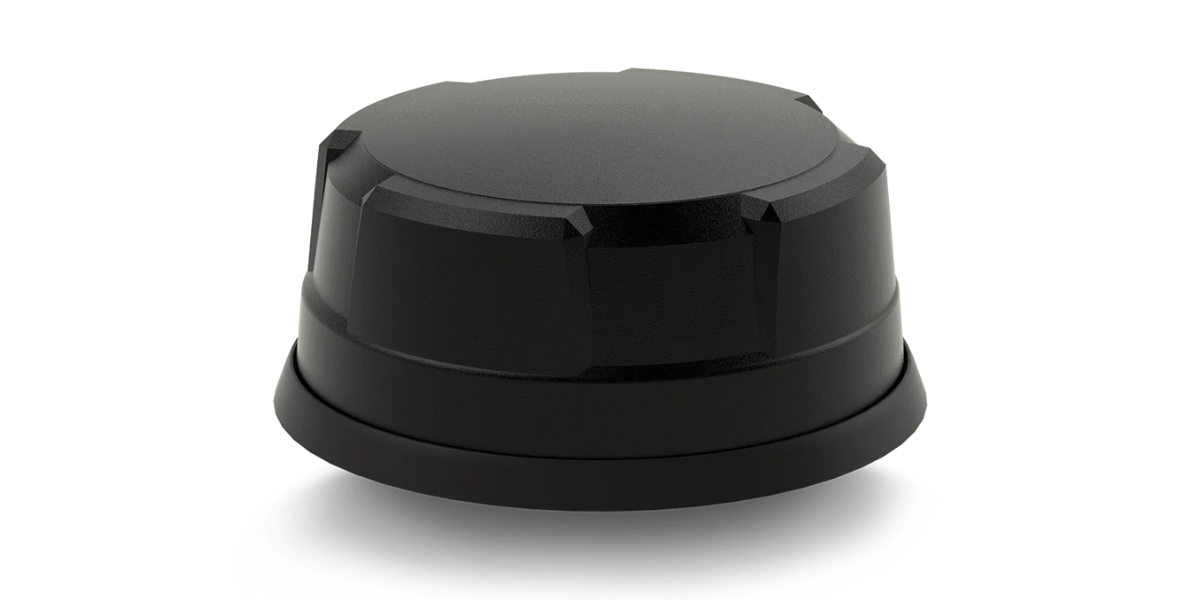

The MAKO® 5G Dome is a range of high-performance 4×4 MiMo antennas covering 617-960/1710-6000MHz with optional GPS/GNSS and optional 2×2, 3×3 or 4×4, or 6×6 MiMo/Diversity at 2.4/5.0/7.2GHz.
The MAKO® 5G Dome consists of up to 11 elements; four isolated high-performance antenna elements covering 617-960/1710-6000MHz offer MiMo/Diversity at cellular/LTE frequencies, up to 6 optional dual band elements covering 2.4 & 5.0/7.2GHz support MiMo/Diversity operation for WiFi and optional high-performance GPS/GNSS antenna with an integrated 26dB gain LNA and high-quality filtering offers unparalleled positioning accuracy. None of the antennas in this range require a metallic ground plane, and all maintain a high level of performance even when mounted on non-metallic surfaces.
FEATURES
- Designed for latest generation LTE Cat 18/20 routers and devices
- Low profile antenna with up to 11 functions in 1
- 4×4 MiMo 4G/5G LTE cellular, Optional GPS/GNSS & optional MiMo 2.4/7.2GHz in one housing
- Kits with extension cables available for a range of LTE routers
- Flame retardant cables compliant to UNECE R118
- Pre-terminated antenna connectors fitted as standard
- Cable flags are attached for easy cable identification and installation
- Extension cable available upon request
BENEFITS
- Available in Black or White
- Single Hole Panel Mount Installation
- Suitable for FirstNet (USA) and ESN (UK) Public Safety Networks
- Ground Plane Independent | Suitable for Conductive or Non-Conductive Surfaces
APPLICATIONS
- Police
- Ambulance
- Fire and Rescue Services
- Public Bus
- Transportation
- Utility
