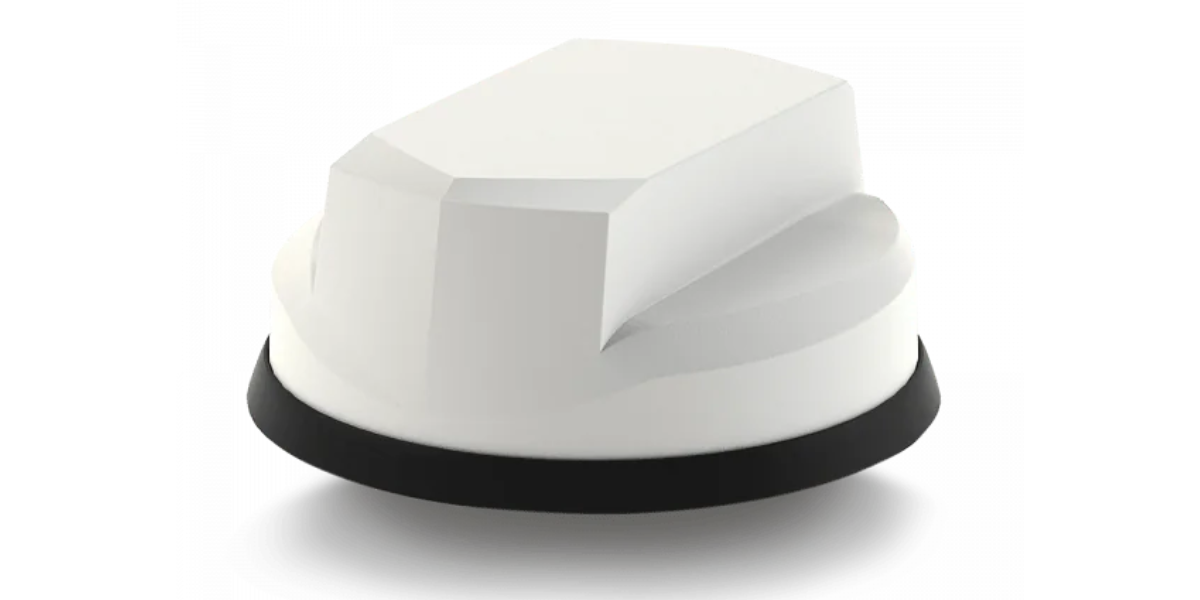

The L[G]M[X]M[X]-6-60[-24-58] range has been designed to provide 2×2 4G/5G MiMo performance from 617-960/1427-6000MHz in a robust low-profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and up to 6×6 MiMo WiFi 2.4/4.9-7.2GHz. The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant with UN ECE R118.03 and EN45545-2) and a halogen-free flame retardant radome the antenna is suitable for many environments and applications.
The LGM variants have an integrated GPS/GNSS module supporting GPS, GLONASS, Galileo, and Compass with 26dB LNA gain. This GPS module features advanced LTE B13/14 filtering designed to minimize potential in-band interference.
The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection.
FEATURES
- The “Great White” 5G version
- Upto 9 functions inside a low-profile housing
- Ground plane independent antenna solution
BENEFITS
- All-in-one vehicle router antenna
- High-performance MiMo cellular antenna
- Suitable for FirstNet (USA) and ESN (UK)
APPLICATIONS
- In-vehicle routers
