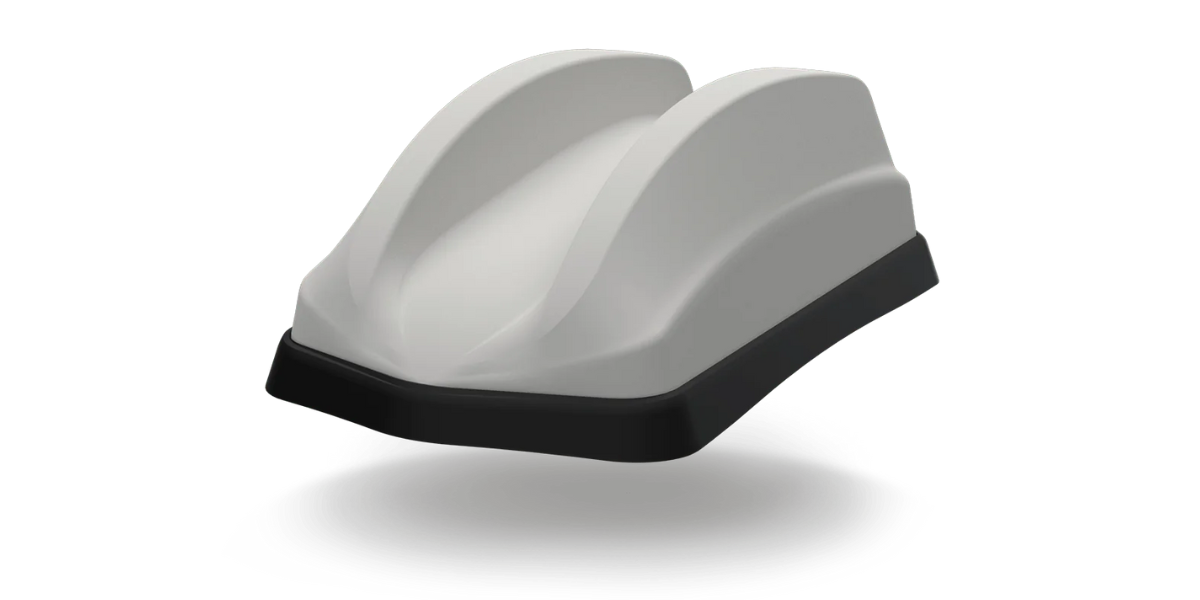

The GPS[X]D4[X]-6-60[-X] is an advanced 4G/5G, GPS/GNSS, and WiFi antenna with a sharkfin-style housing.
The housing contains a 4×4 MiMo antenna function for 4G/5G (617-960/1427-6000MHz), up to 6×6 MiMo dual-band WiFi, which supports WiFi 6e. It can include up to 4x active antennas for GPS/GLONASS/Galileo/BeiDou each with 26dB gain LNA and advanced filtering for LTE Band13/14 operation.
In addition, there is an integral stud mount for an external antenna whip. A blanking cap is supplied for when this whip position is not required.
The antenna should be installed on a metal panel when a comms whip is used, but if a whip is not required, then it may be fitted on a non-metallic panel and still offer similar performance.
The shark fin design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial, and transport applications where a cost-effective, efficient, and robust antenna is essential. Requiring only a single-hole mounting, the antenna reduces vehicle damage, installation time, cost, and visual impact whilst protecting a vehicle’s resale value.
FEATURES
- Distinctive Automotive SharkFin design
- Up to a 15-in-1 Combination Antenna Solution
- Covers all 4G/5G LTE bands, WiFi 6e, and GPS/GNSS bands
- 4×4 MiMo 600-6000MHz LTE antenna elements
- Offers up to 6×6 MiMo WiFi 6e, and up to 4x GPS/GNSS
- Allows for external VHF, UHF, or combination whip for voice radio connectivity
BENEFITS
- Can come as a complete antenna kit with extension cables for a plug-and-play solution for any 5G veh
- IP69K certified and UN ECE 118 certified
- Provides the user with an overt/covert all-in-one antenna solution
APPLICATIONS
- Public safety
- Mass transit
- Utilities & Industrial
