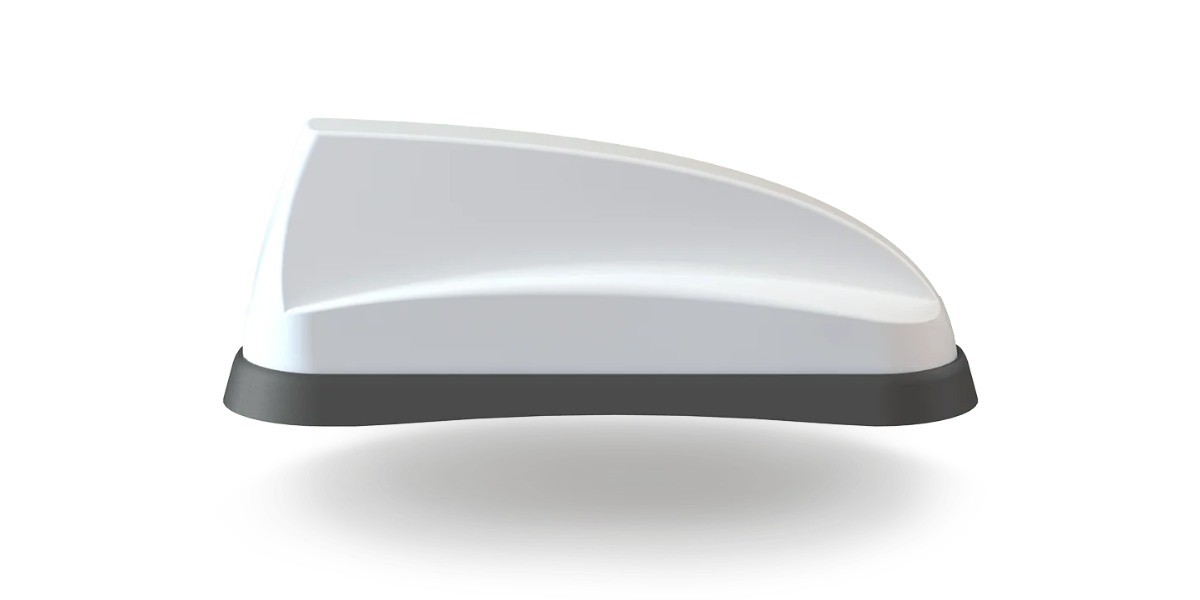

4G/5G MiMo Antenna Discrete OEM Style Sharkfin. The SHKG ‘Sharkee®’ range has become a byword for industry-leading technology in discrete OEM sharkfin housing. The SHKG-6- 60 brings 5G capability to the product family. The antenna can be fitted on a metallic or non-metallic panel and still offer similar performance. The OEM style shark fin housing contains a 2×2 MiMo antenna function for 4G/5G (617-960/1710-6000MHz) and the option of 2×2, 3×3, or 4×4 MiMo dual-band WiFi, which supports WiFi 6. An active antenna for GPS/GLONASS/Galileo/BeiDou is included, with 26dB gain LNA and advanced filtering for LTE Band 13/14 operation. The SHKG shark fin style design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial, and transport applications where a cost-effective, efficient, and robust antenna is essential. Requiring only a single hole mounting, the SHKG reduces vehicle damage, installation time & cost, and visual impact whilst protecting a vehicle’s resale value.
FEATURES
- Discreet automotive OEM SharkFin design
- Multiple antenna functions in a single-housing
- Single hole mounting – reduces vehicle damage, installation time & cost
- Can be mounted on a metallic or non-metallic panel surface
- Will fit between roof ribs on all major vehicle manufacturers
- Can be retrofitted to a vehicle replacing the factory-fitted antenna
- 2×2 MiMo Cellular – 617-960 / 1710-6000MHz
- GPS/GNSS with advanced filtering for LTE Band 13/14
- Optional 2×2, 3×3, or 4×4 MiMo WiFi 2.4/4.9-7.2GHz
- UN ECE R118 Compliant Cable Feeds
APPLICATIONS
- Police & Law Enforcement
- EMS & Fire
- Mass Transit buses and coaches
- Utility Vehicles
